Fanvil LINKVIL W710H Cordless Multi-cell System Base Station

Overview

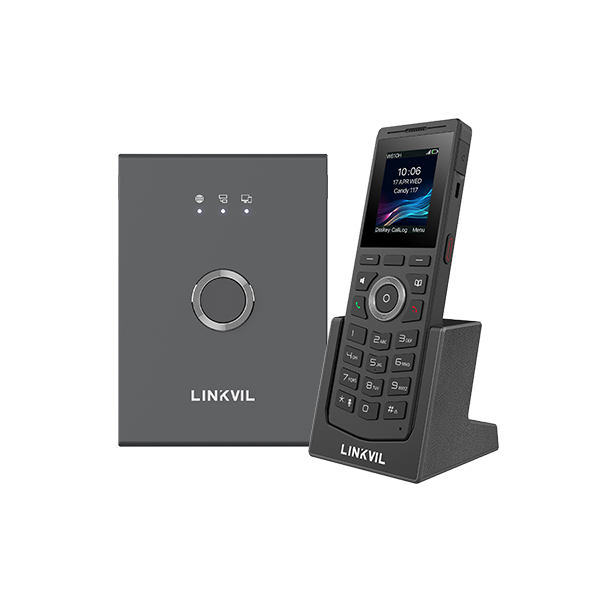

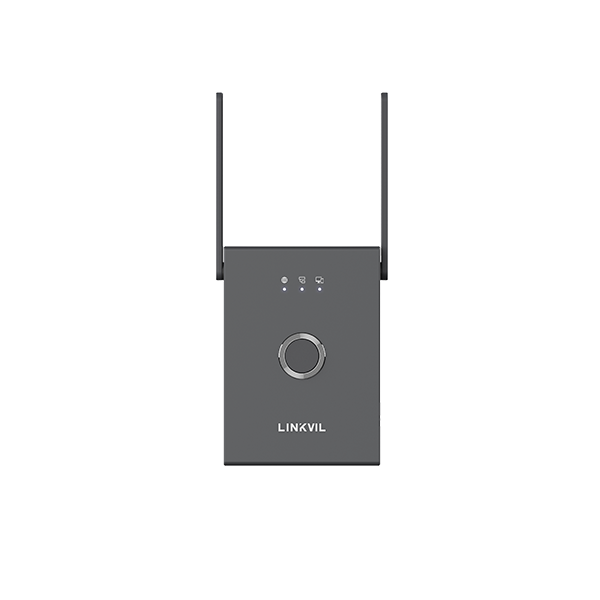

The LINKVIL W710H is a base station and system manager for the LINKVIL Cordless Multi-cell System. It provides flexible roaming communication in both Single-Cell and Multi-Cell modes, delivering reliable wireless connectivity for enterprises, shopping malls, hotels, warehouses, and mobile office applications.

System Architecture

Single-Cell Mode

• Managed by W710H-Manager
• Communication over LAN without SIP account required
• Supports up to 30 terminals
• Handles up to 16 simultaneous calls
• Ideal for small to medium deployments

Multi-Cell Mode

• Combines W710H-Managers and W710H-Base stations
• Supports up to 300 terminals
• Handles up to 200 simultaneous calls
• Up to 20 base stations per system
• Seamless roaming and switching between base stations

900MHz Technology Benefits

Operating on the 902-928 MHz frequency band provides significant advantages:

• Extended Coverage: Up to 100 meters indoors and 700 meters outdoors per base station
• Superior Building Penetration: Signals pass through walls, floors, and obstacles effectively
• Reduced Interference: No competition with WiFi, Bluetooth, or other 2.4GHz devices
• Reliable Roaming: Seamless handover between base stations without dropped calls

System Capacity & Management

Multi-Cell System Capabilities

• Up to 20 base stations per deployment
• Up to 300 handsets system-wide
• Up to 300 SIP accounts
• Up to 300 internal extensions
• Up to 200 parallel calls across the system
• Each base station handles up to 30 handsets and 16 parallel calls

Terminal Management Features

• Add, delete, import, export terminals
• Check terminal information and status
• Configure terminals: Reset, upgrade, Do Not Disturb
• Configuration management: 10 terminal configuration files
• Troubleshooting: Packet capture, syslog
• Local phonebook: 1000 contacts per terminal
• XML and LDAP support
• 20,000 call log capacity with statistics (all, incoming, outgoing, missed, forwards)

Network & Connectivity

Ethernet & IP

• 10/100Mbps Ethernet with bridge connection
• 2x RJ45 ports: Network and PC (bridged)
• IPv4, IPv6, and dual-stack support
• Static IP or DHCP
• PoE powered or DC adapter

Security & Encryption

• WPA2-PSK encryption
• 802.1x network access authentication
• VPN support: L2TP and OpenVPN
• VLAN support
• SRTP and TLS protocols

Deployment & Provisioning

• Auto-provisioning via FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, TR-069
• Web management interface
• Web-based packet dump for troubleshooting
• Configuration export and import
• Remote firmware upgrades
• Syslog support
• LLDP and CDP protocols

Audio Codecs

Narrowband: G.711a/u, G.729, G.729A, G.729B, G.729AB, iLBC Wideband: G.722, Opus

Technical Specifications

Physical

• Dimensions: 140 x 100 x 26mm
• Weight: 183g

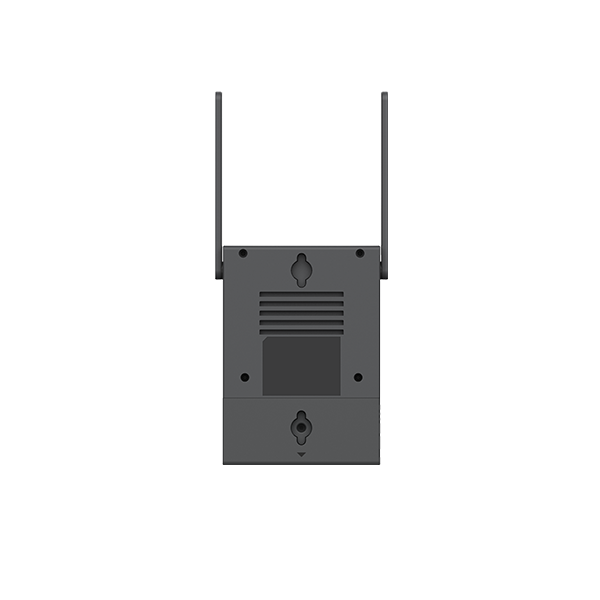

• Installation: Wall-mounted
• Material: Plastic shell
• Color: Gunmetal

Power

• DC Input: 5V/1A or PoE
• PoE Power Consumption: 0.75W – 1.14W
• DC Power Consumption: 0.489W – 0.775W

Operating Conditions

• Working temperature: -10°C to +45°C
• Storage temperature: -20°C to 60°C
• Working humidity: 5% to 95%

Network Protocols

• 802.11ah, UDP/TCP/TLS, RTP/SRTP, STUN, DHCP, IPv6, LLDP, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069

Languages

• English, Japanese, Korean, French, German, Dutch, Spanish, Italian, Polish, Portuguese, Greek, Turkish, Russian, Chinese, Traditional Chinese

Applications

Perfect for businesses requiring centrally managed wireless communication across large facilities. The scalable architecture supports everything from single-site offices to multi-building campus deployments with hundreds of mobile workers in warehouses, hospitals, hotels, manufacturing plants, and retail environments.
