Fanvil Linkvil W610H IPCT Wireless Phone, Large Capacity Battery, HD voice and Noise Reduction, Built-in bluetooth 5.0 8 hours’ talk time or 160 hours

The LINKVIL W610H is a 900MHz cordless phone system supporting up to 300 handsets and 200 simultaneous calls across 20 base stations. Superior range and building penetration makes it ideal for warehouses, hotels, and large facilities requiring reliable mobile communication.

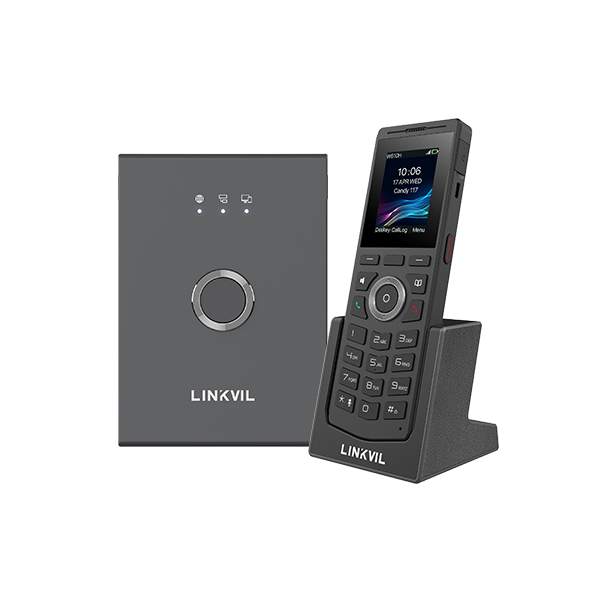

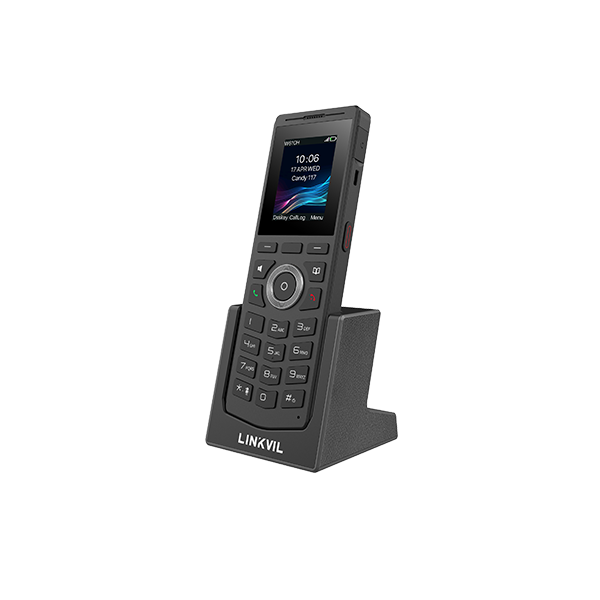

LINKVIL W610H Cordless Multi-cell System Phone

Overview

The LINKVIL W610H is a portable cordless phone designed for mobile communication in enterprises, shopping malls, residential areas, hotels, and warehouses. It pairs with the LINKVIL W710H Base to deliver stable wireless communication across large facilities.

900MHz Technology Benefits

The W610H operates on the 902-928 MHz frequency band, providing significant advantages over standard 2.4GHz and WiFi systems:

Superior Range: Covers larger areas with fewer base stations
Better Building Penetration: Signals pass through walls, floors, and obstacles more effectively
Reduced Interference: No competition with WiFi, Bluetooth devices, or microwaves
Stable Performance: Maintains consistent connection quality in warehouses and multi-story buildings

System Capacity & Scalability

Enterprise-Grade Architecture

Supports up to 300 handsets across the system
Up to 20 base stations per deployment
200 simultaneous calls system-wide
Each base station handles up to 30 handsets and 16 simultaneous calls
Support for 20 SIP servers and 300 SIP accounts

Signal Range (Region Specific)

US Models: Up to 100 meters indoors, 700 meters outdoors
EU Models: Up to 60 meters indoors, 350 meters outdoors
Seamless roaming and switching between base stations

Key Specifications

Display & Interface

2.0-inch 240×320 color LCD screen
Intuitive user interface with custom 16 DSS keys

Battery Performance

1900mAh rechargeable lithium battery
Up to 8 hours talk time
Up to 160 hours standby time
Type-C charging port

Audio Quality

HD Voice with noise reduction
Acoustic Echo Cancellation (96ms)
Bluetooth 5.0 and 3.5mm headset jack support

Communication Features

4 SIP lines
Seamless roaming and switching
Push-to-talk (PTT) button for quick dial
3-way conferencing
Call forwarding, waiting, and transfer

Connectivity

1000 local contacts
600 call logs
Remote phonebook (XML/LDAP, 1000 entries)
WPA2-PSK encryption

Physical

Dimensions: 156 x 53 x 17.7mm
Weight: 145g

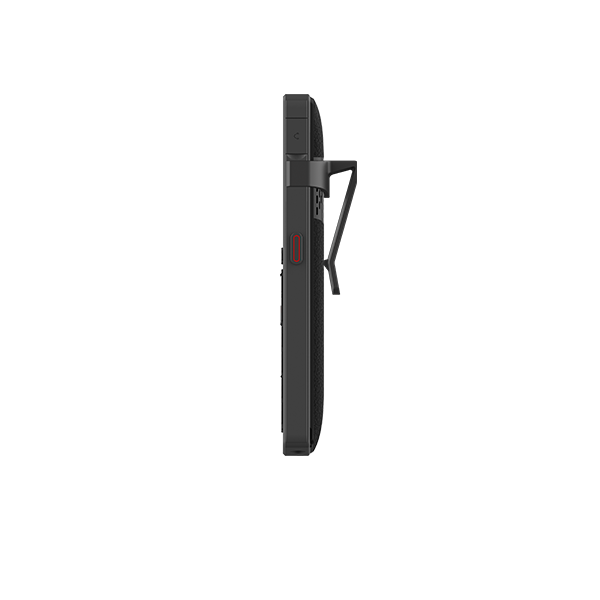

Sturdy belt clip included
Desktop charging base
Drop height: 1.8m

Operating Conditions

Working temperature: -10°C to +45°C
Working humidity: 10-95%

Applications

Ideal for businesses requiring mobile communication across large facilities, including warehouses, hotels, hospitals, manufacturing plants, and retail environments where reliable wireless coverage is critical. The scalable architecture allows deployment from small offices to large campus environments with hundreds of users.
